RIO-28 devices connect to power and user signals via four green, screw-terminal connectors. Each pin on these connectors is labelled on the housing's overlay:
open collector, digital outputs; When the associated DO LED is lit, the output is pulled to ground. Each output is rated at 200mA max.
ground; Negative DC power for the RIO device and electrical reference point for all inputs and outputs. All ground pins are tied together internally.
optically-isolated digital inputs; These inputs are pulled high internally, and suitable for connecting to most Form A or TTL outputs.
5 Volt supply for user sensors; Maximum current load is 100mA.
analog inputs; Each input is capable of measuring a signal from 0 to 20mA. The module presents a 250Ω load on each input.
analog outputs; Each output is capable of driving from 4 to 20mA into a 250Ω load.
positive RS-485 signal
negative RS-485 signal
transmit data, from the RIO-28 to the user device
clear to send; a high signal indicates that the RIO-28 needs to send data
receive data, from the user device to the RIO-28
data terminal ready; used to place the radio into command mode
positive DC power for the RIO device; Both pins are tied together internally.
Most installations do not require hardware handshaking.

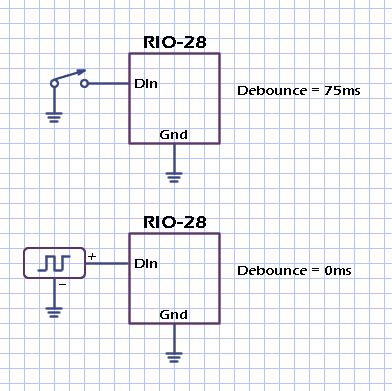

Digital inputs should be driven to ground to signal "on".
Use a Debounce value of 75 for mechanical inputs and a Debounce value of 0 for digital inputs.
RIO-28 outputs are pulled to ground when "on". They can sink up to 200mA. Here is a typical configuration that uses the output to control a user load:

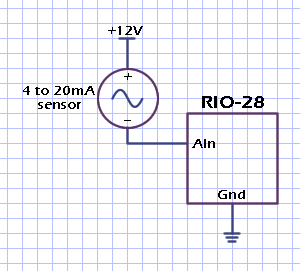

Analog inputs can sense a range of 0 to 20 mA. Here is a typical configuration that uses the analog input to monitor the current through a sensor.
Analog outputs can drive a range of 0 to 20 mA into a 250Ω load.
